首页 > 产品展示 > 大压缩量用大压缩量用

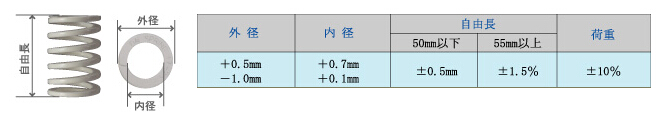

外径
mm
内径
mm
自由长
mm
弹簧常数 紧贴长
mm(*)
30万回 50万回 100万回   Code No.
N/mm kgf/mm 压缩量
mm
荷重
N(kgf)
压缩量
mm
荷重
N(kgf)
压缩量
mm
荷重
N(kgf)
10.50 6.00 15.00 10.46 1.07 6.00 8.30 86.3/(8.8) 7.50 78.5/(8) * IVO10.5-15
20.00 7.85 0.80 8.00 11.00 10.00 * IVO10.5-20
25.00 6.28 0.64 10.00 13.80 12.50 * IVO10.5-25
30.00 5.23 0.53 12.00 16.50 15.00 * IVO10.5-30
35.00 4.48 0.46 14.00 19.30 17.50 * IVO10.5-35
40.00 3.92 0.40 16.00 22.00 20.00 * IVO10.5-40
45.00 3.49 0.36 18.00 24.80 22.50 * IVO10.5-45
50.00 3.14 0.32 20.00 27.50 25.00 * IVO10.5-50
55.00 2.85 0.29 22.00 30.30 27.50 * IVO10.5-55
60.00 2.62 0.27 24.00 33.00 30.00 * IVO10.5-60
65.00 2.41 0.25 26.00 35.80 32.50 * IVO10.5-65
70.00 2.24 0.23 28.00 38.50 35.00 * IVO10.5-70
75.00 2.09 0.21 30.00 41.30 37.50 * IVO10.5-75
80.00 1.96 0.20 32.00 44.00 40.00 * IVO10.5-80
12.50 7.00 15.00 11.77 1.20 6.00 8.30 97.1/(9.9) 7.50 88.3/(9) * IVO12.5-15
20.00 8.83 0.90 8.00 11.00 10.00 * IVO12.5-20
25.00 7.06 0.72 10.00 13.80 12.50 * IVO12.5-25
30.00 5.88 0.60 12.00 16.50 15.00 * IVO12.5-30
35.00 5.04 0.51 14.00 19.30 17.50 * IVO12.5-35
40.00 4.41 0.45 16.00 22.00 20.00 * IVO12.5-40
45.00 3.92 0.40 18.00 24.80 22.50 * IVO12.5-45
50.00 3.53 0.36 20.00 27.50 25.00 * IVO12.5-50
55.00 3.21 0.33 22.00 30.30 27.50 * IVO12.5-55
60.00 2.94 0.30 24.00 33.00 30.00 * IVO12.5-60
65.00 2.72 0.28 26.00 35.80 32.50 * IVO12.5-65
70.00 2.52 0.28 28.00 38.50 35.00 * IVO12.5-70
75.00 2.35 0.24 30.00 41.30 37.50 * IVO12.5-75
80.00 2.21 0.23 32.00 44.00 40.00 * IVO12.5-80
90.00 1.96 0.20 36.00 49.50 45.00 * IVO12.5-90
100.00 1.77 0.18 40.00 55.00 50.00 * IVO12.5-100
14.50 8.50 15.00 17.00 1.73 6.00 8.30 140.2/(14.3) 7.50 127.5/(13) * IVO14.5-15
20.00 12.75 1.30 8.00 11.00 10.00 * IVO14.5-20
25.00 10.20 1.04 10.00 13.80 12.50 * IVO14.5-25
30.00 8.50 0.87 12.00 16.50 15.00 * IVO14.5-30
35.00 7.28 0.74 14.00 19.30 17.50 * IVO14.5-35
40.00 6.37 0.65 16.00 22.00 20.00 * IVO14.5-40
45.00 5.67 0.58 18.00 24.80 22.50 * IVO14.5-45
50.00 5.10 0.52 20.00 27.50 25.00 * IVO14.5-50
55.00 4.64 0.47 22.00 30.30 27.50 * IVO14.5-55
60.00 4.25 0.43 24.00 33.00 30.00 * IVO14.5-60
65.00 3.92 0.40 26.00 35.80 32.50 * IVO14.5-65
70.00 3.64 0.37 28.00 38.50 35.00 * IVO14.5-70
75.00 3.40 0.35 30.00 41.30 37.50 * IVO14.5-75
80.00 3.19 0.33 32.00 44.00 40.00 * IVO14.5-80
90.00 2.83 0.29 36.00 49.50 45.00 * IVO14.5-90
100.00 2.55 0.26 40.00 55.00 50.00 * IVO14.5-100
125.00 2.04 0.21 50.00 68.80 62.50 * IVO14.5-125
150.00 1.70 0.17 60.00 82.50 75.00 * IVO14.5-150
17.00 10.50 20.00 19.61 2.00 8.00 11.00 216/(22) 10.00 196.1/(20) * IVO17-20
25.00 15.69 1.60 10.00 13.80 12.50 * IVO17-25
30.00 13.08 1.33 12.00 16.50 15.00 * IVO17-30
35.00 11.21 1.14 14.00 19.30 17.50 * IVO17-35
40.00 9.81 1.00 16.00 22.00 20.00 * IVO17-40
45.00 8.72 0.89 18.00 24.80 22.50 * IVO17-45
50.00 7.85 0.80 20.00 27.50 25.00 * IVO17-50
55.00 7.13 0.73 22.00 30.30 27.50 * IVO17-55
60.00 6.54 0.67 24.00 33.00 30.00 * IVO17-60
65.00 6.03 0.61 26.00 35.80 32.50 * IVO17-65
70.00 5.60 0.57 28.00 38.50 35.00 * IVO17-70
75.00 5.23 0.53 30.00 41.30 37.50 * IVO17-75
80.00 4.90 0.50 32.00 44.00 40.00 * IVO17-80
90.00 4.36 0.44 36.00 49.50 45.00 * IVO17-90
100.00 3.92 0.40 40.00 55.00 50.00 * IVO17-100
125.00 3.14 0.32 50.00 68.80 62.50 * IVO17-125
150.00 2.62 0.27 60.00 82.50 75.00 * IVO17-150
175.00 2.24 0.23 70.00 96.30 87.50 * IVO17-175
